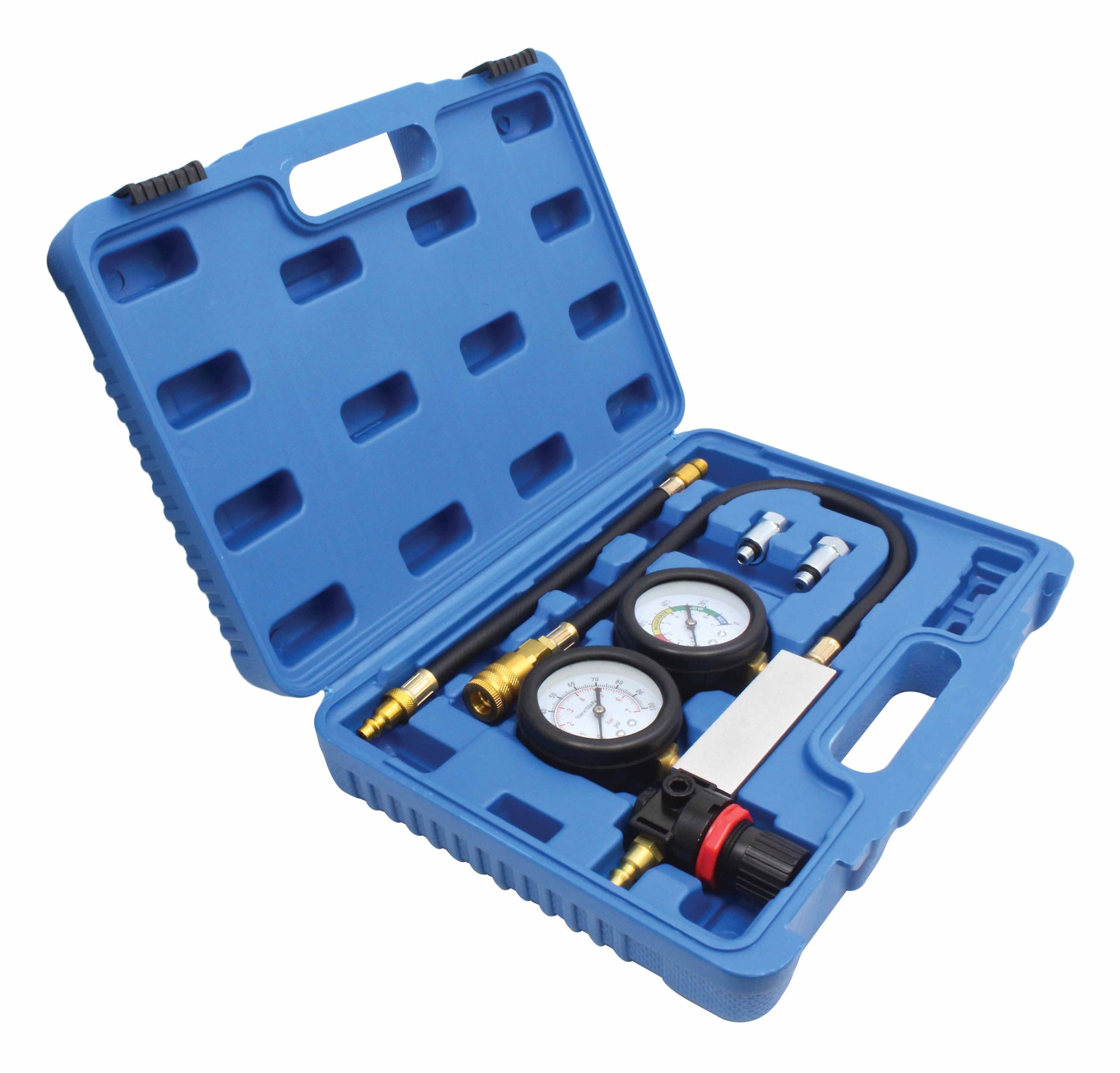

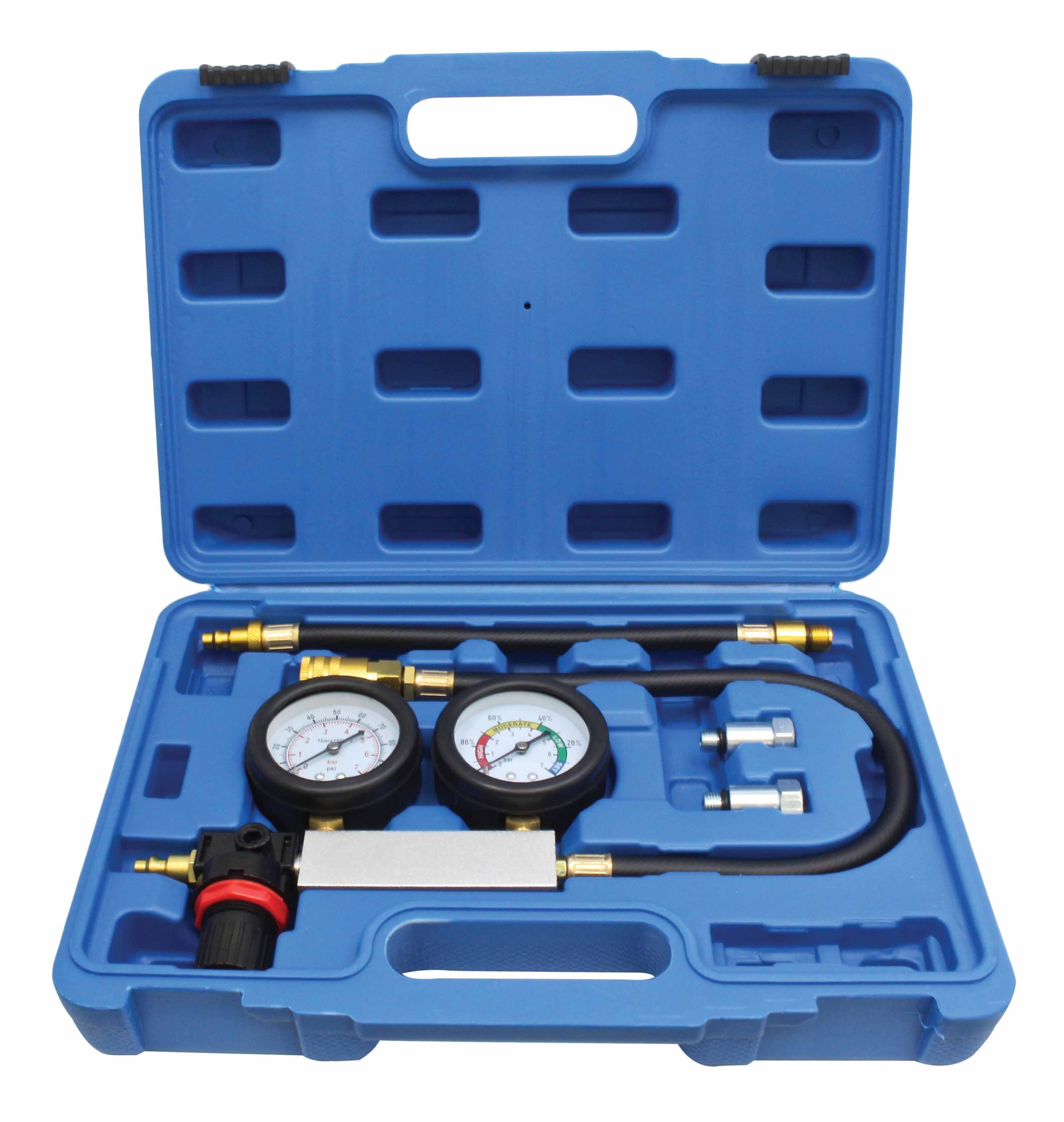

CYLINDER LEAK DETECTOR AND CRANK STOPPER



Specialist SATRA kit designed to test and check cylinder wear in a car engine.

The cylinder pressure test kit is used in professional workshops by mechanics to diagnose the condition of the engine by measuring the amount of air escaping.

The tester works by injecting compressed air into the cylinder and measuring the amount of air escaping, which allows you to identify problems such as worn piston rings, leaking valves, or a damaged head gasket.

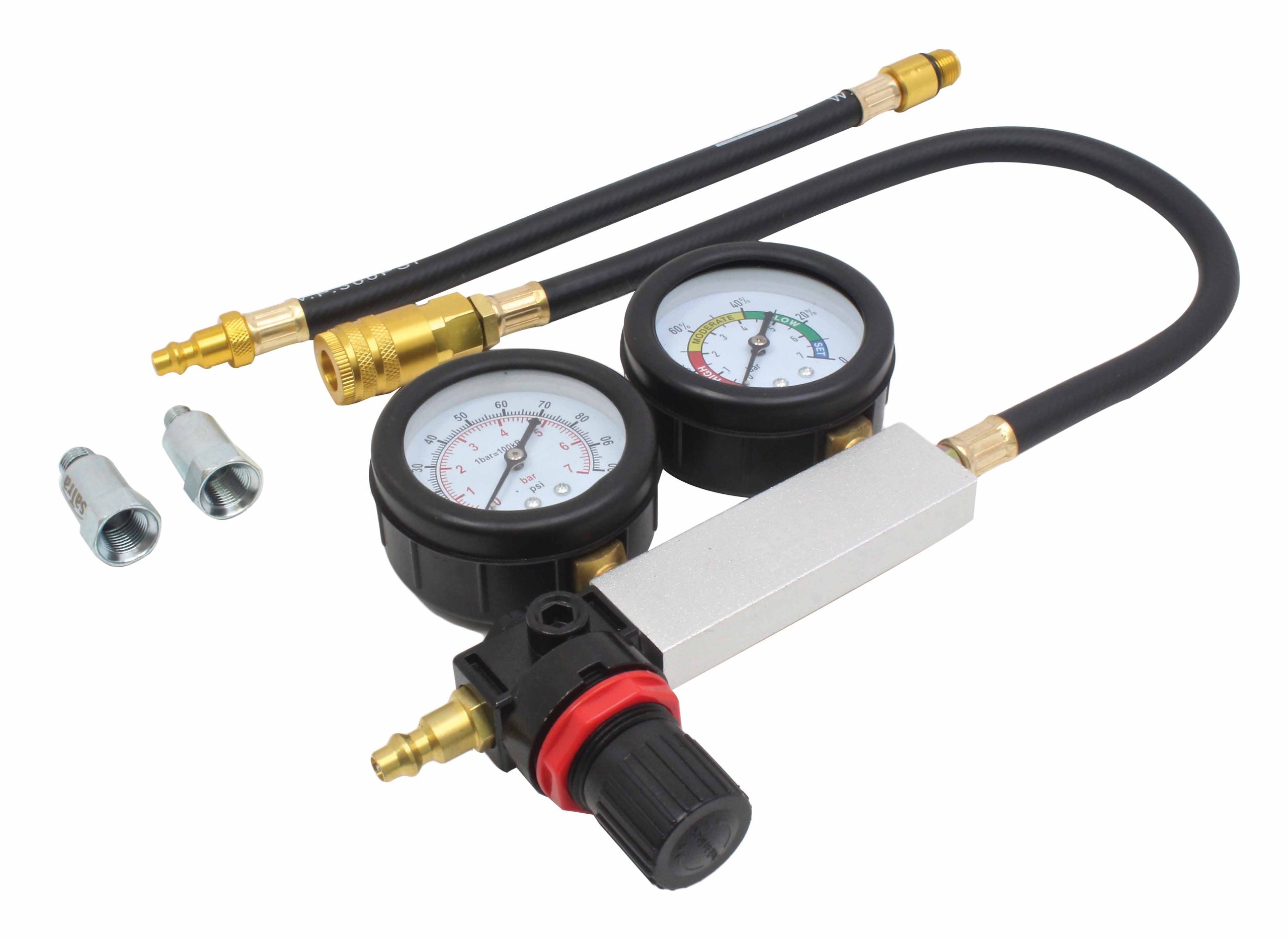

– The pressure gauge (left) measures the inlet pressure and has a range of 0-7 bar (or 0-100 psi).

– The pressure gauge (right) indicates the percentage of air leakage. Its range is from 0% to 100%, with colored zones

(green, yellow, red) indicating the degree of tightness – green indicates good and red indicates serious leakage.
