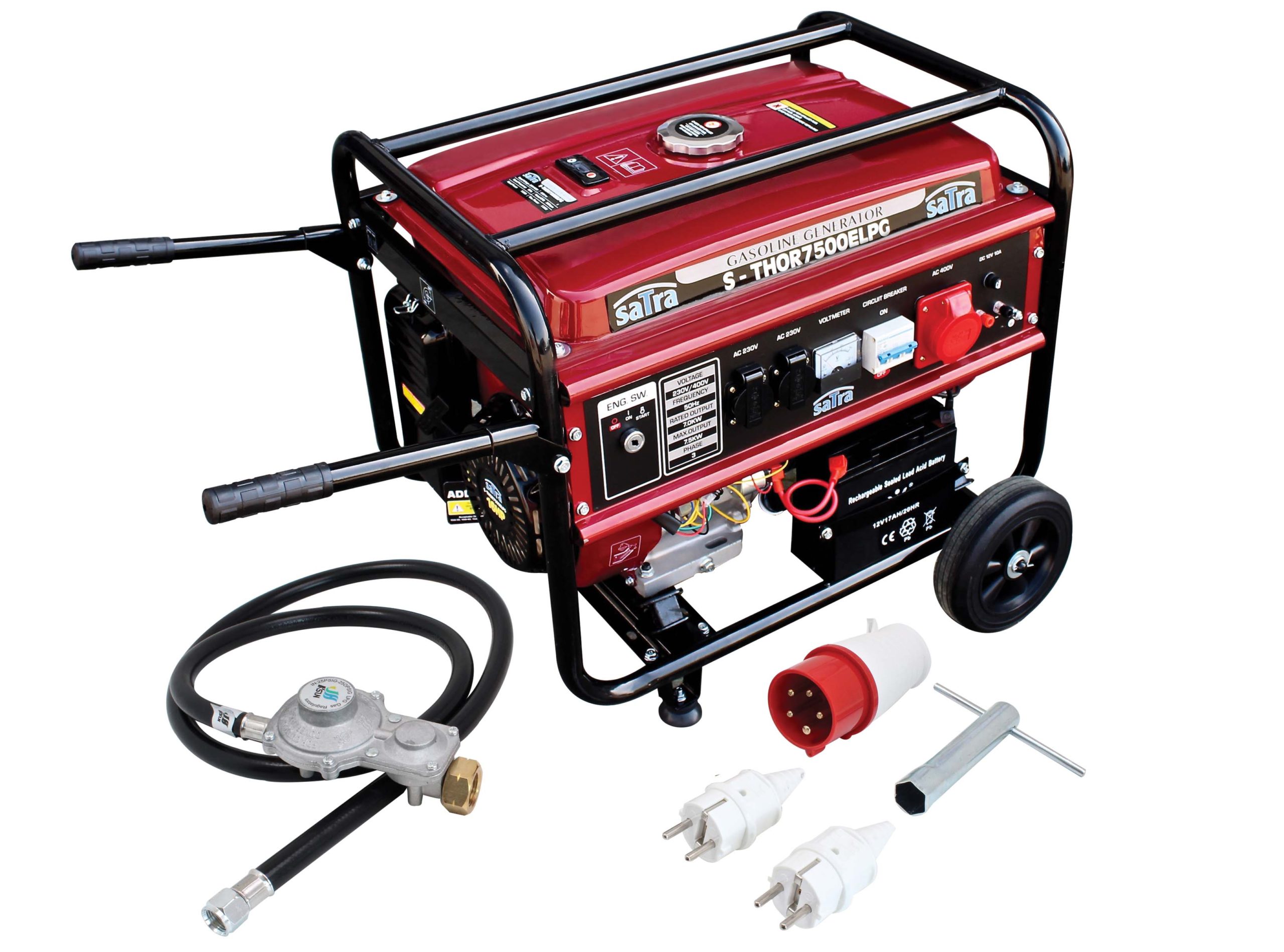

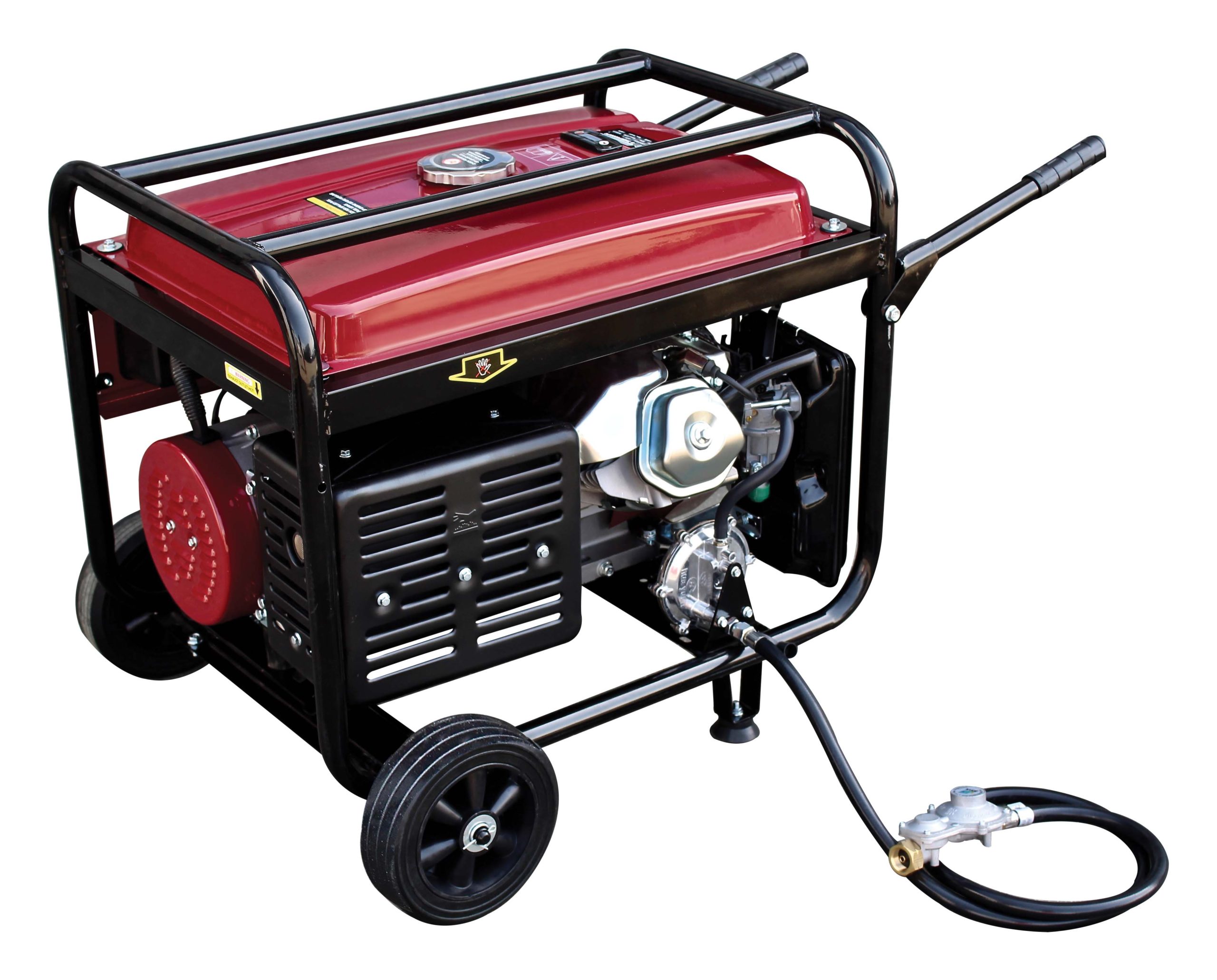

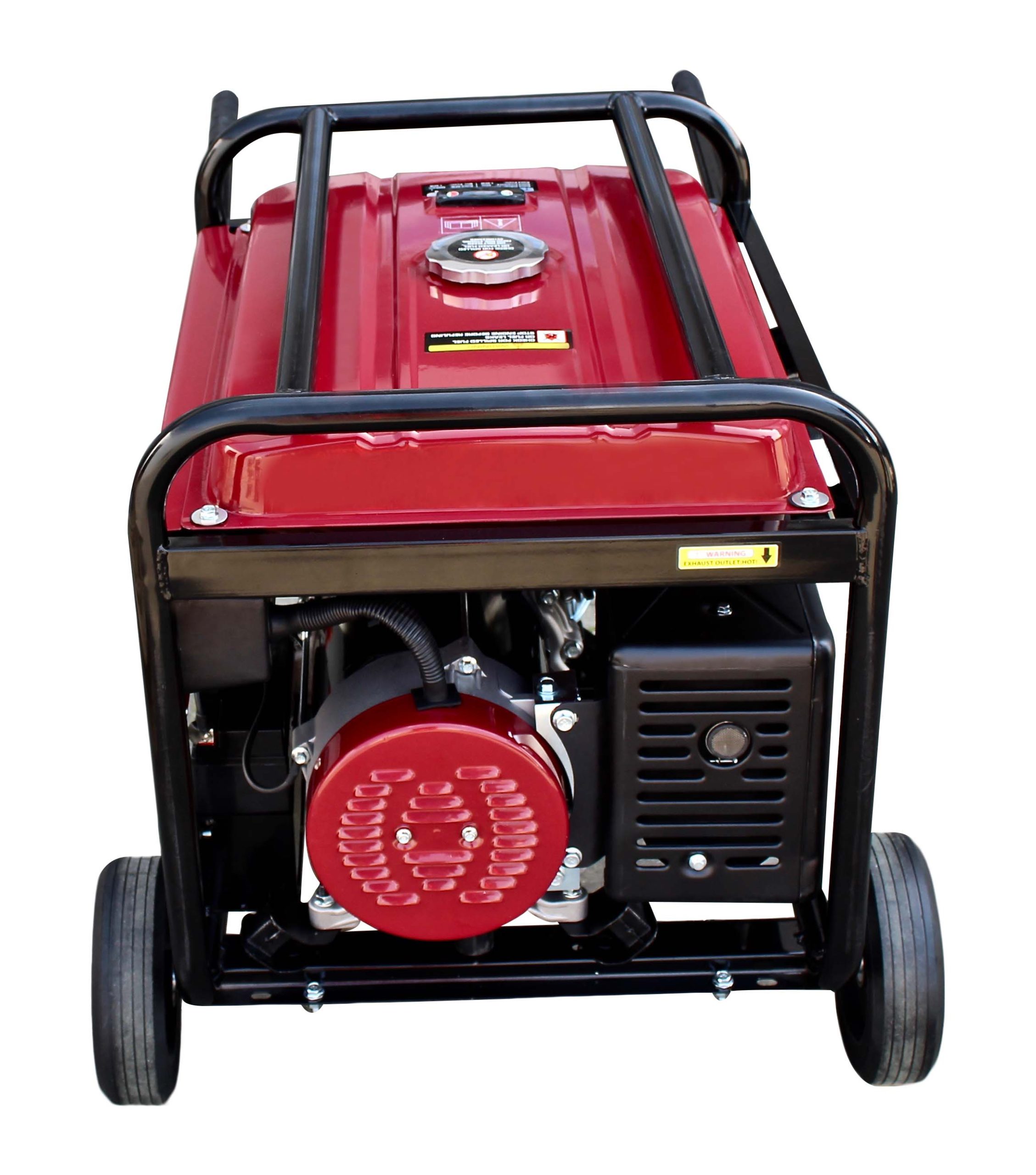

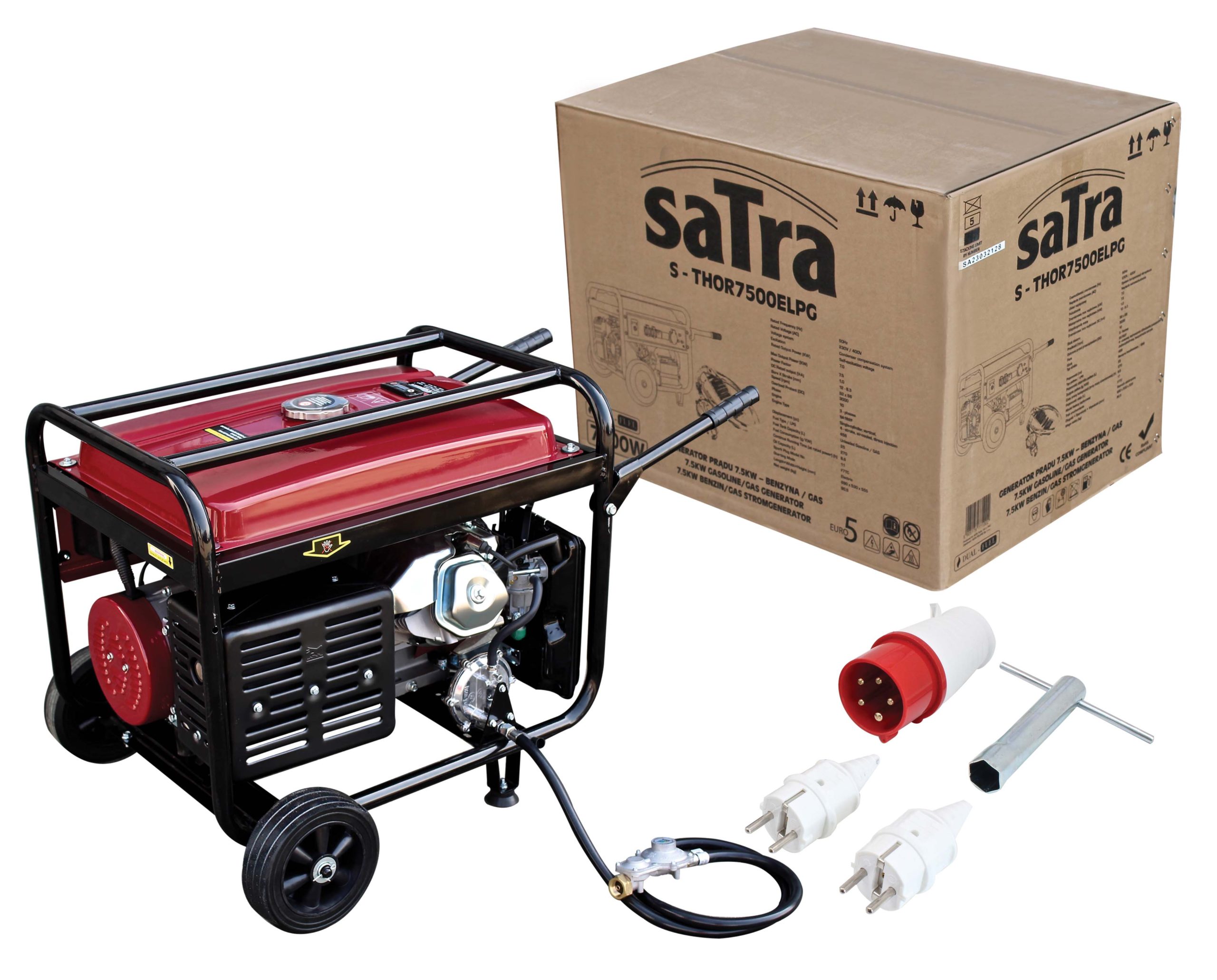

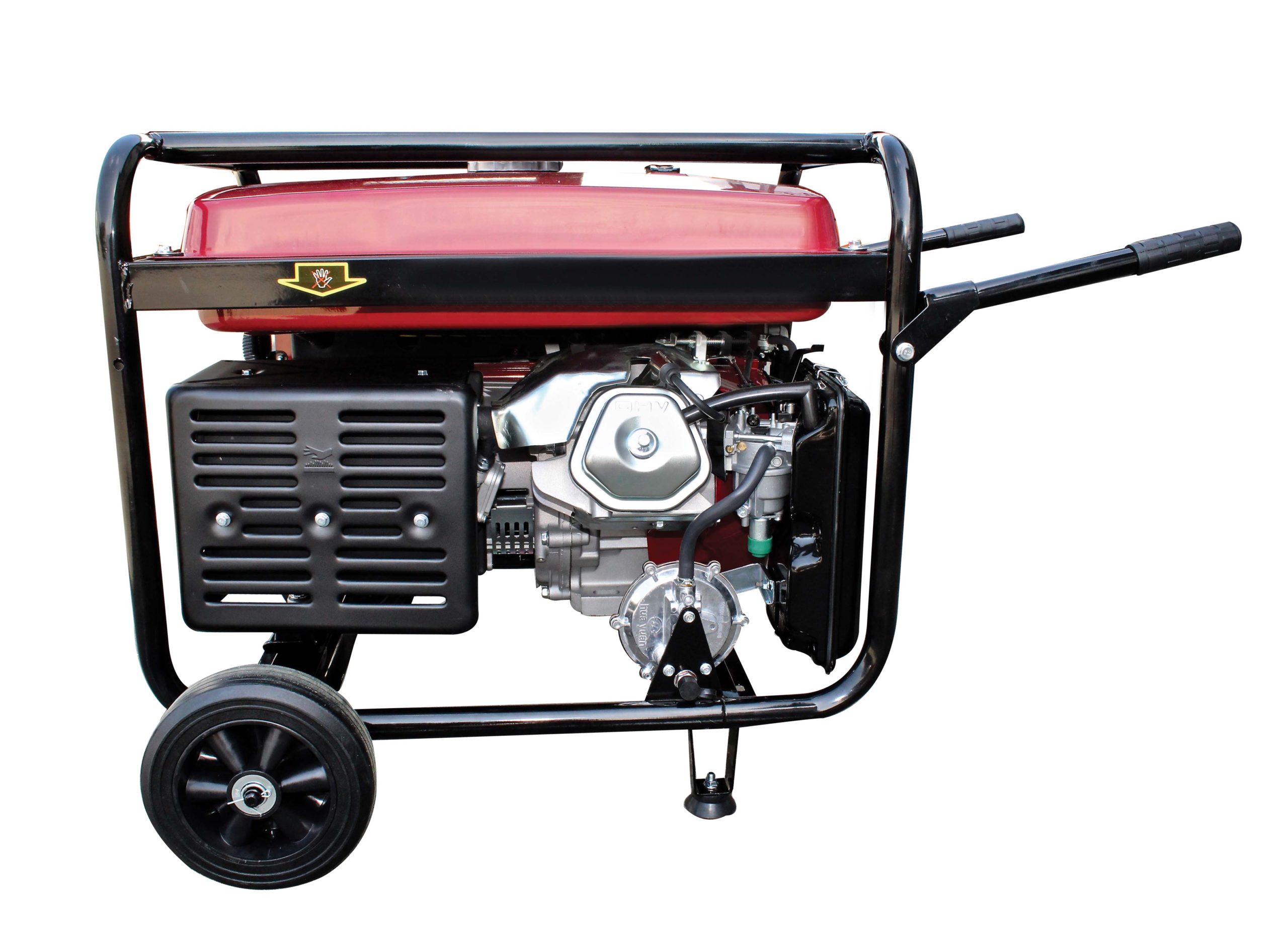

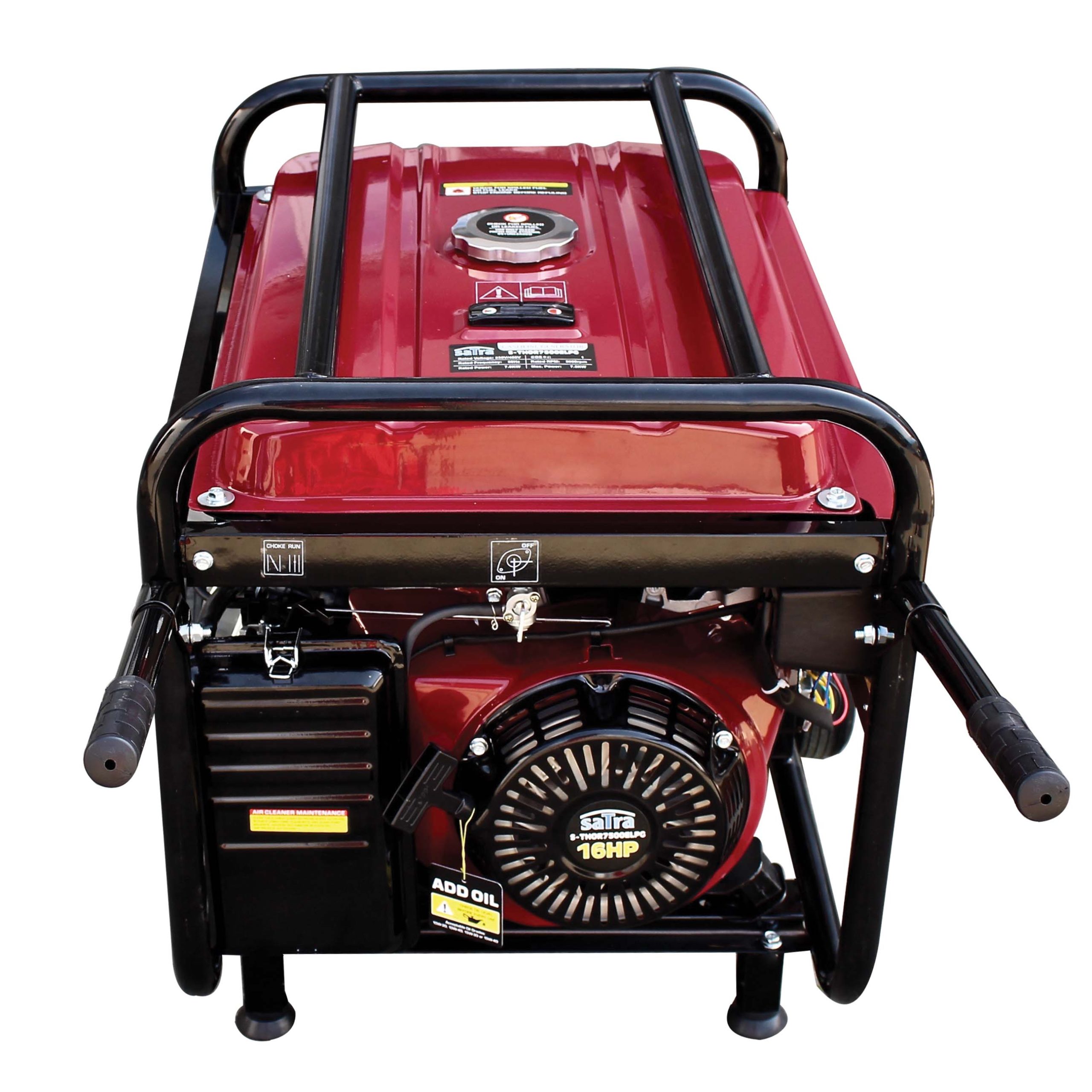

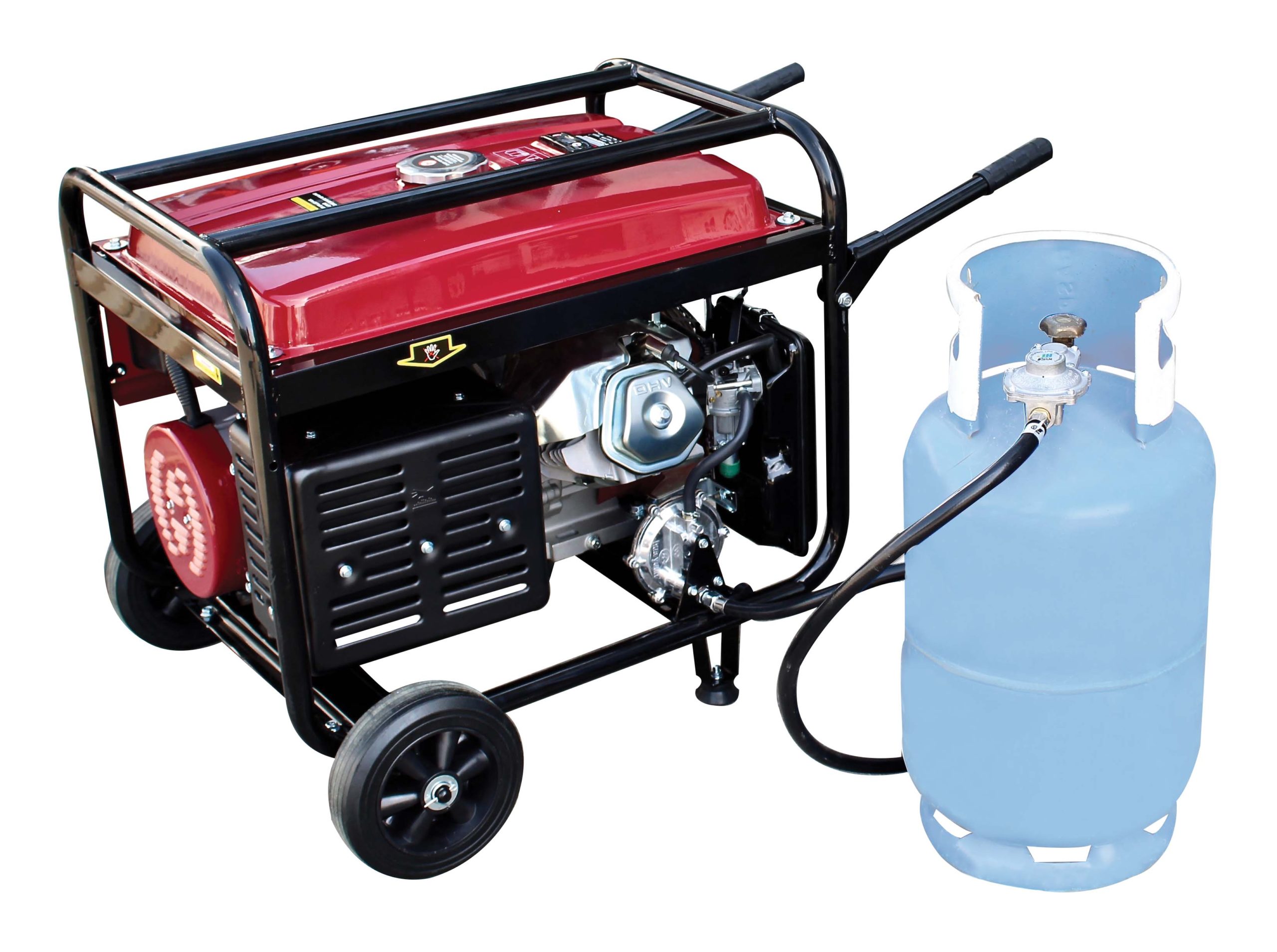

S-THOR7500ELPG
7.5KW GASOLINE LPG GENERATOR
S-THOR7500ELPG | |
Type | 7.5KW Gasoline/GAS Generator |
Rated Frequency (Hz) | 50Hz |
Rated Voltage (AC) | 230V / 400V |
Voltage system | Condenser compensation system |
Excitation | Self-excitation voltage |
Rated Output Power (KW) | 7.0 |
Max Output Power (KW) | 7.5 |
Power Factor | 1.0 |
DC Rated output (V-A) | 12-8.3 |
Bore X Stroke (mm) | 92×66 |
Speed (rpm) | 3000 |
Overload Protect (DC) | 10 |
Phase | 3 – phases |
Engine | SA192F |
Engine Type | Single-cylinder, vertical, 4-stroke, air-cooled, direct injection |
Displacement (cc) | 458 |
Fuel Type / LPG | Unleaded Gasoline / GAS |
Fuel Tank Capacity (L) | 25 |
Fuel Consumption (g/KW) | 270 |
Continue Running Time (at rated power) (h) | 8.6 |
Oil Capacity (L) | 1.1 |
Spark Plug Model No | F7TC |
Starting Mode | Electirc |
Length×Width×Height (mm) | 690x530x555 |
Net weight (kg) | 90.5 |
