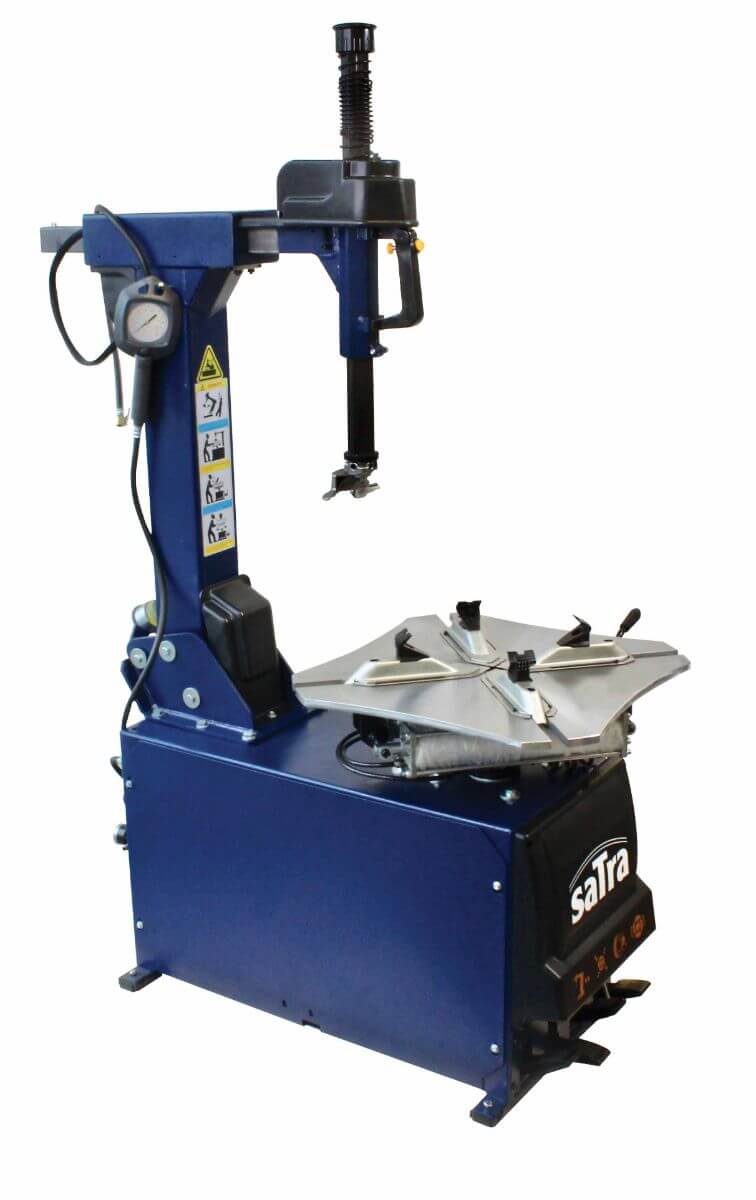

S-TCP45

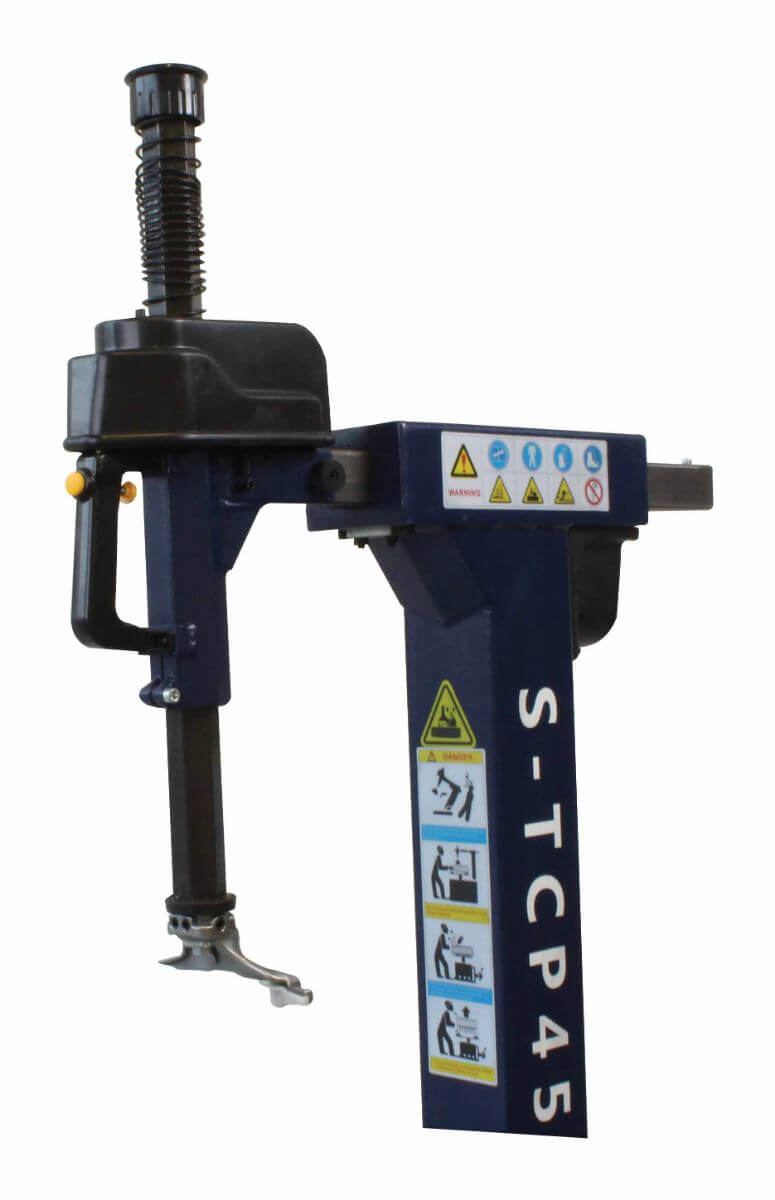

SEMI AUTOMATIC SIDE SWING ARM
Rim diameter: (external) 11 ~ 23”
Rim diameter: (internal) 13 ~ 26 “
Maximum wheel diameter: 45 “
Wheel width: 14
Working pressure: 8-10Bar
Gross weight: 248KG
Net weight: 221KG
Voltage: 110V / 220V / 380V 1PH / 3PH 50 / 60HZ
Engine power: 1.1KW / 0.75KW
Packaging dimensions: 1150X900X990mm
Max. Height: 1610mm
Length: 1066mm
Width: 900mm
Work speed: 6.8 cycles / min.
Noise level: 72dB
Temp. work: -5 °C ~ + 40 °C
