Timing lock for Renault/Ford/Volvo 16V/20V petrol engines



A set intended for locking the timing belt in a wide range of Renault, Ford and Volvo cars with 16V/20V petrol engines.

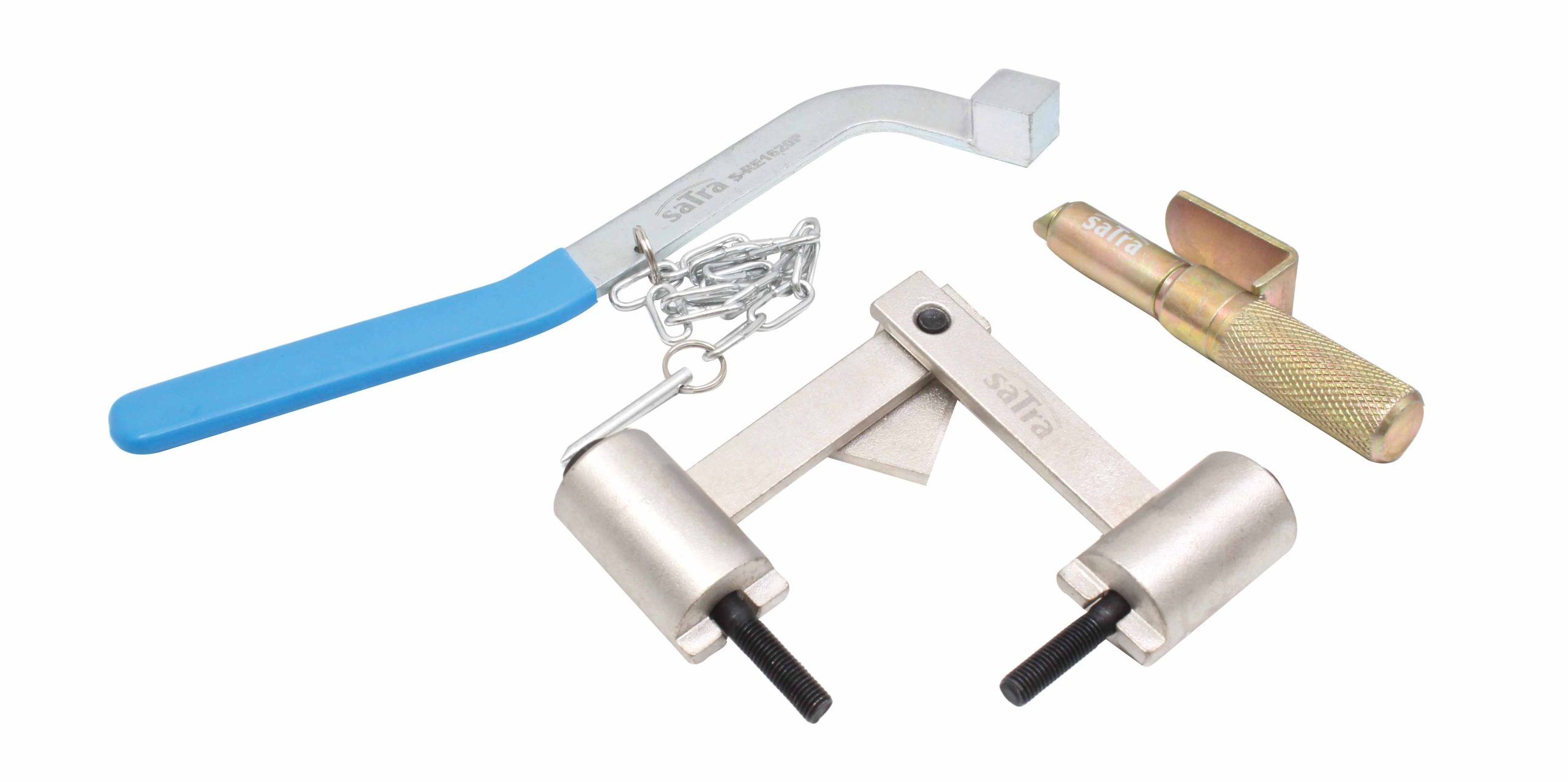

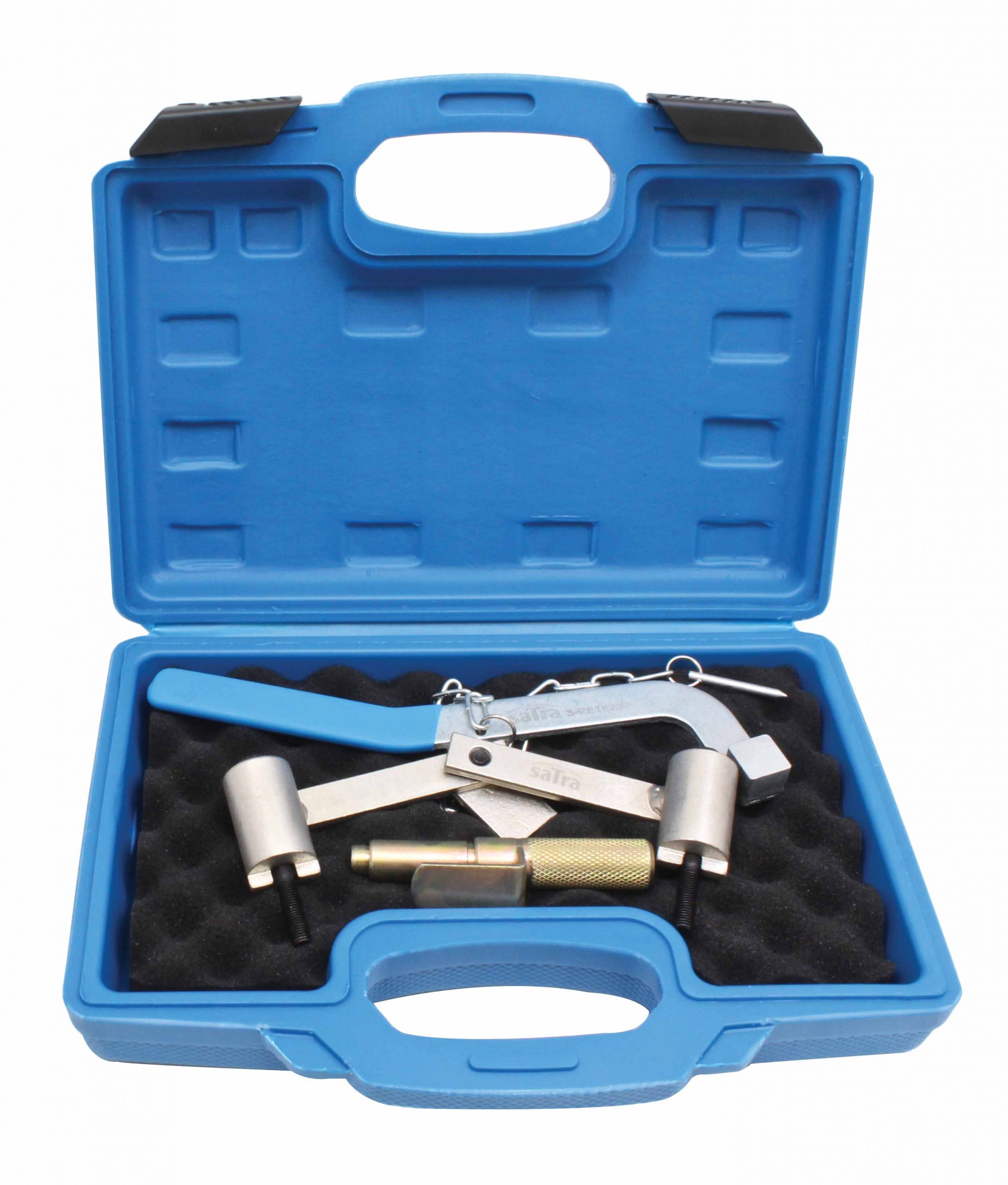

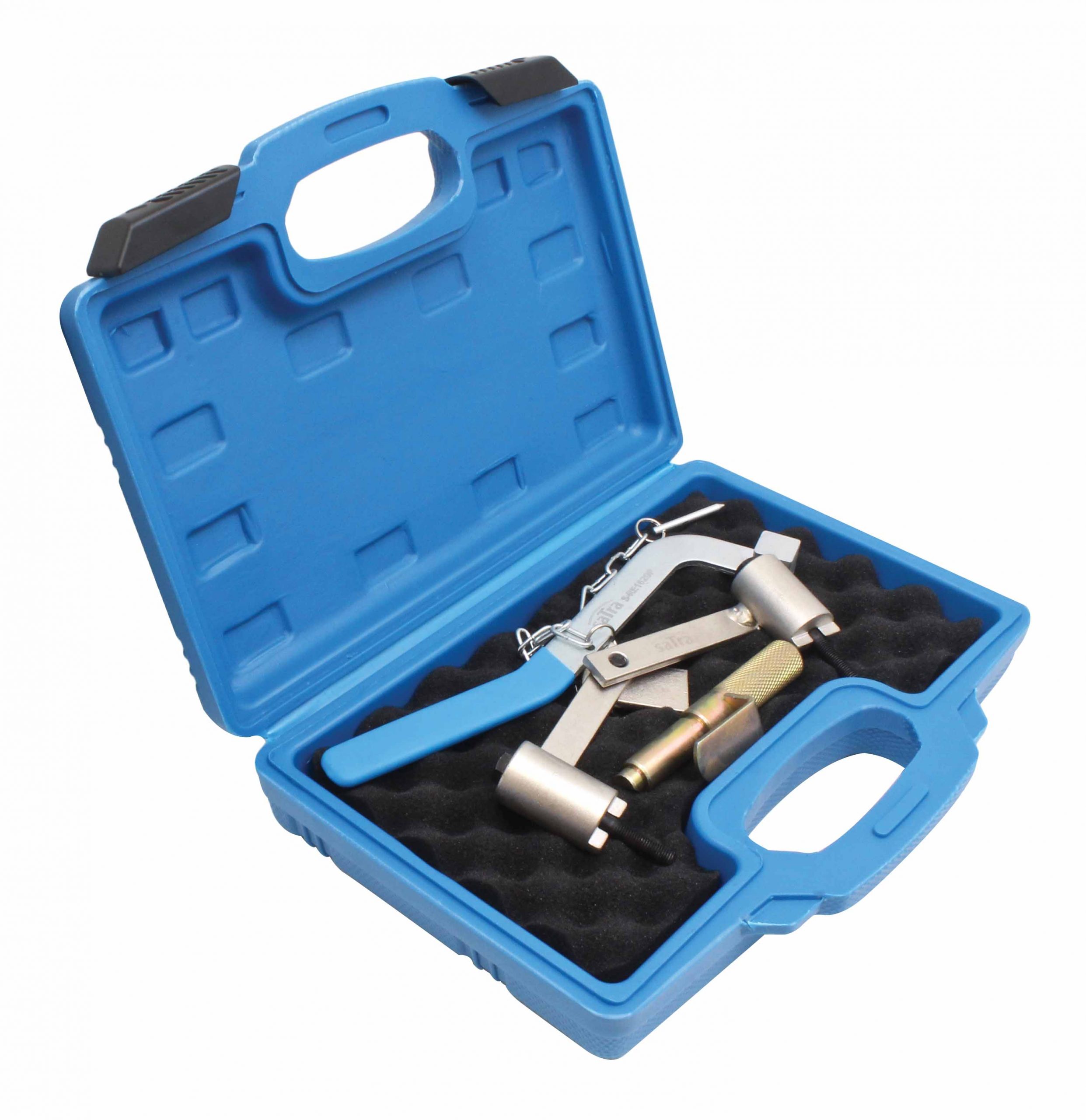

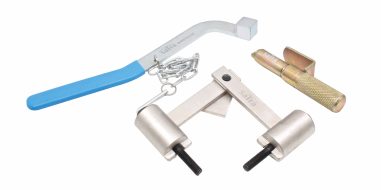

Set contains:

• camshaft setting tool
• wrench for the tensioner of the auxiliary drive belt and crankshaft
• flywheel locking tool



Application:

• Renault: Laguna 2.0 16V, 2.5 20V (1996-1999), Safrane 2.0 16V, 2.5 20V (1996-2001)
• Ford: Kuga (2008-), Focus ST RS (2004-), S-Max (2006-), Galaxy (2006-), Mondeo (2007-)
• Volvo: 850 (1992-1997), ˙C70 (1998-2002), ˙S40 (1996-2004), ˙V40 (1996 -2004), S60 (2001-2005), ˙S70 (1997-2000), S80 (1999-2005)



Engines:

• Renault (2.0 16V): N7Q 704/710/711N7U
• Renault (2.5 20V): 700/701
• Ford: JZDA, HYDB, HYDC, HUWA
• Volvo: B4164S, B4164S2, B4184S, B4184S2, B4184S3, B4184S9, B4184S10, B4194T, BS194T2, B420S4, B4204S2, B4204T, B4204T2, B4204T3, B4204T5, B5202 Fs, B5204FT, B5204T2, B5204T3, B5204T4, B5204T5, B5234FS, B5204FT, B5234T3 , B5234T4, B5234T5, B5234T6, B5234T7, B5234T8, B5234T9, B5244S, B5244S2, B5244SG, B5244SG2, B5244T, B5244T3, B5244T4, B5244T5, B5244T7
