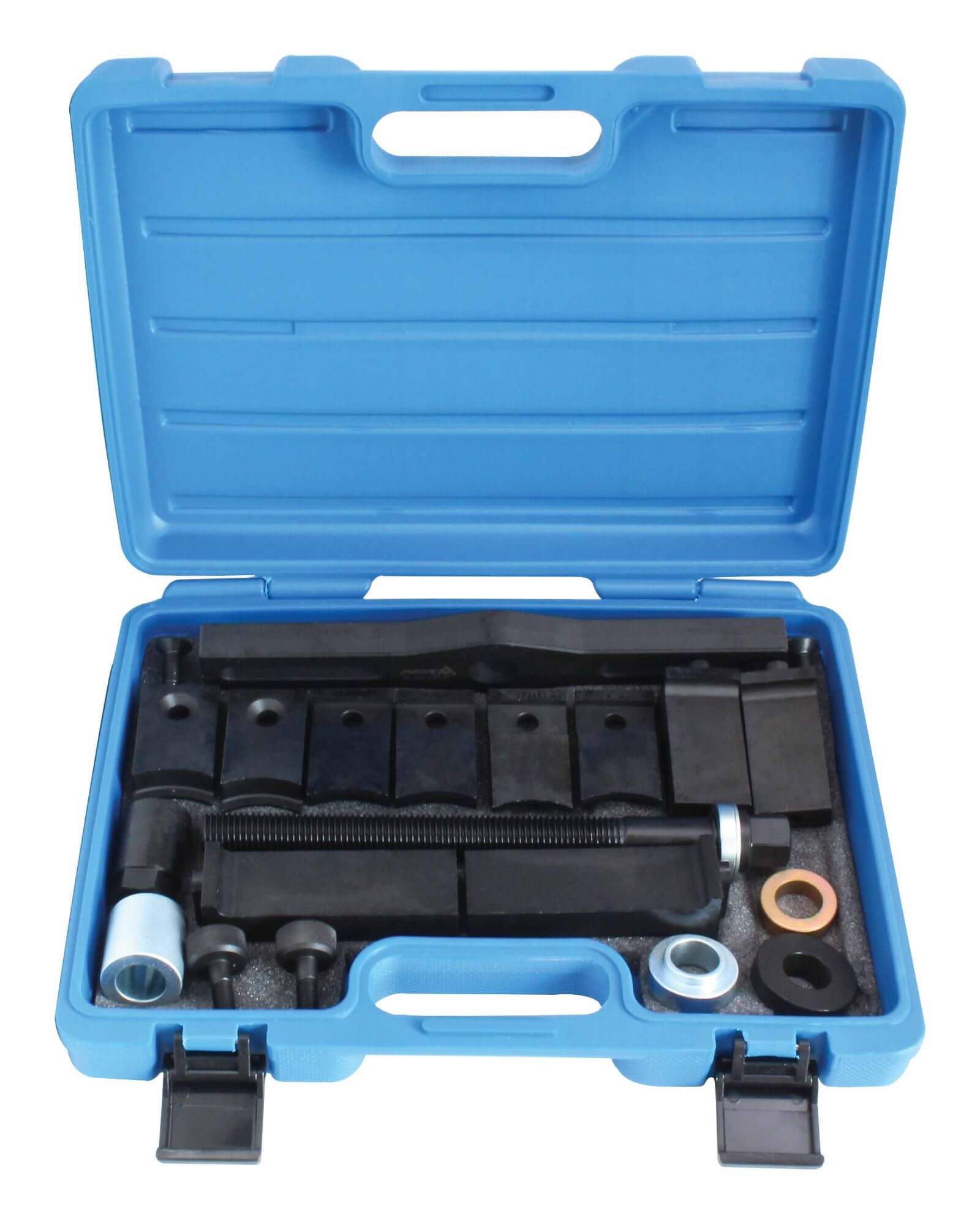

A-SF22HP

UNIVERSAL PULLER PAT



Hub disassembly and assembly tool.

The use of an internal and external puller after rotating the arms 180 °.

Intended for intensive work in car services.

Sliding arms on the beam allow the arms to be positioned correctly.

Hardened threaded bolt with bearing ensures stability and strength in the work performed.

The arms and the beam are made of high quality chrome vanadium steel



Working range of external arms: 245-345mm

Internal arms working range: 45-145mm

Bolt diameter: 22mm

Driver size: 24mm

Shoulder lengths: 70-114mm

Foot Lengths: 70mm

Foot width: 40mm

Foot Depth: 44mm

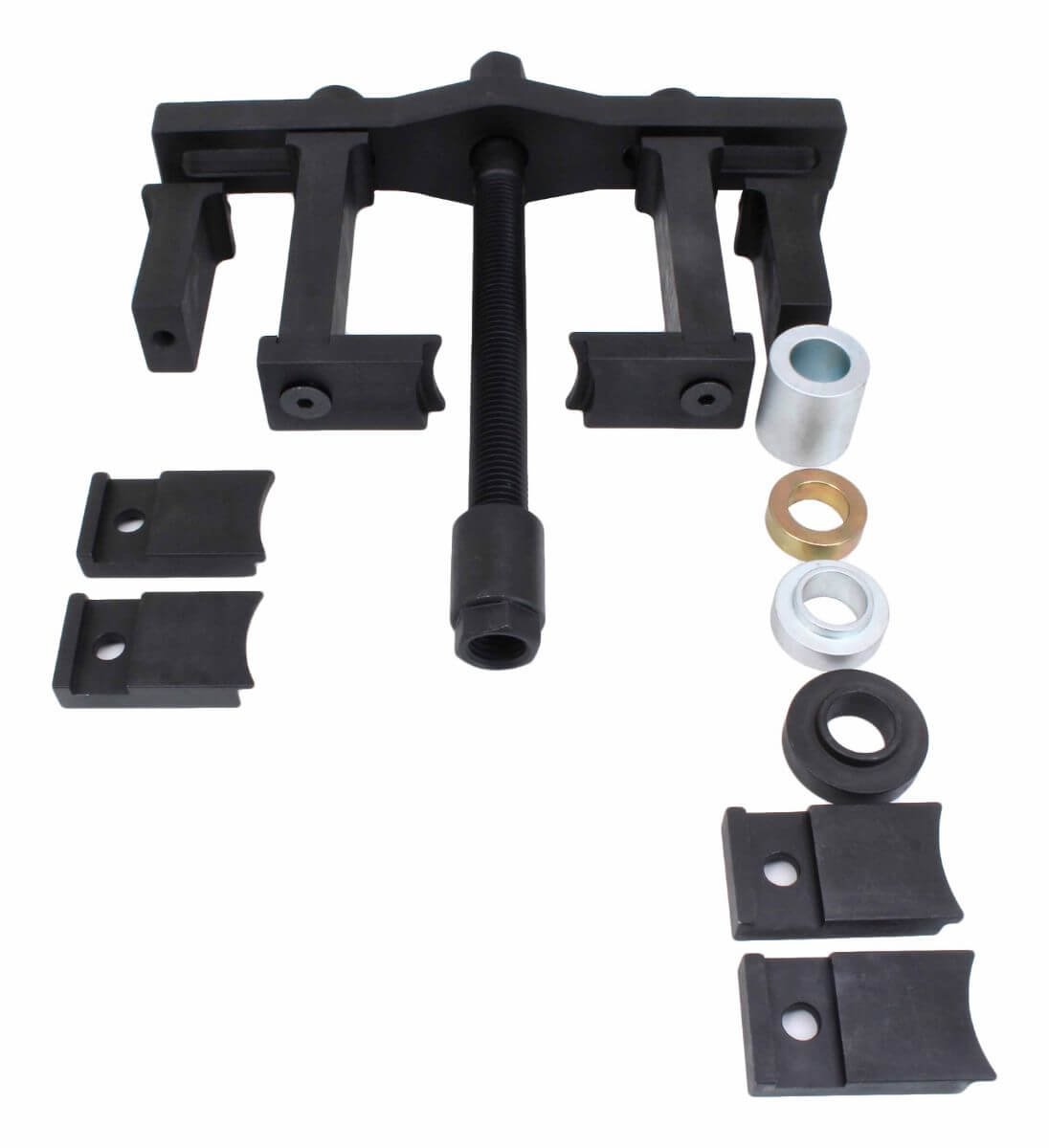

Sleeve sizes:

Threaded bushing: driver 22mm / internal Ø 20mm, height 53mm

High silver bushing: inside Ø 22mm, outer Ø 38mm, height 40mm

Low grade silver bushing: inner Ø 22mm, outer Ø 40 / 28mm, height 16mm

Black graduated bushing, inner Ø 22mm, outer Ø 48 / 28mm, height 16mm

Low gold bushing: Ø inside 22mm, outer Ø 38mm, height 11mm
