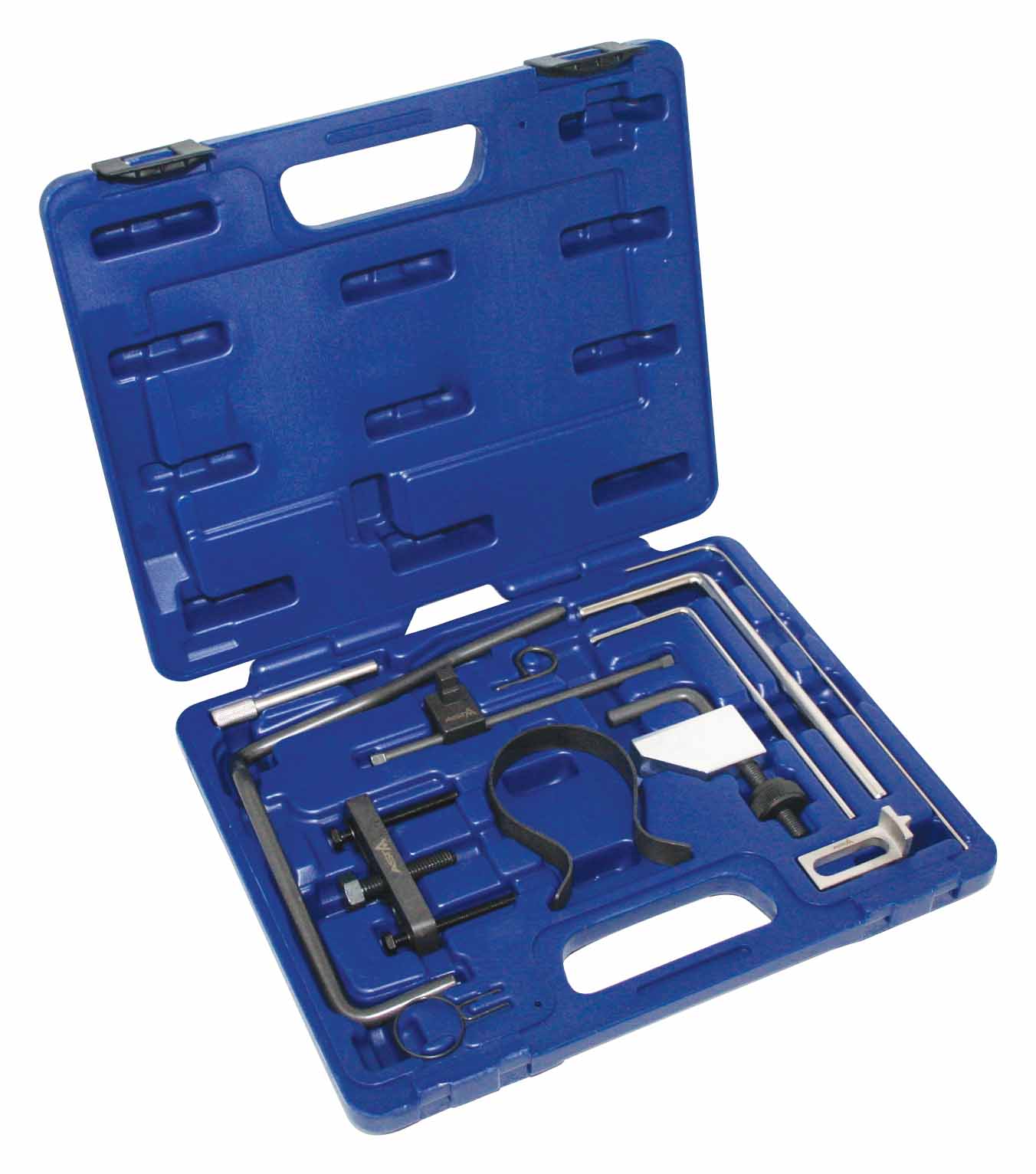

TIMING  SET  FOR  CITROEN, PEUGEOT AND  FIAT

This kit sets the timing on the valve on the DW10 and DW12 Diesel Fiat and PSA engines. The set includes: Crankshaft locking pin (8mm), Comshaft locking Pin, Flywheel locking pin, Auxiliary drive belt tensioner locking pin, Cam belt retaining clip, Flywheel holding tool, Cam belt tensioner tool,-Crankshaft pulley puller / extractor,Cam Belt Tensioner locking pin, Cranshaft pulley centralistation, Cam belt clamp



ENGINE TYPES:

• DW10ATED4 | DW10JATED4 | DW10BTED/L3 | DW10ATD | DW10TD | DW10ATED | DW10BTED | DW10UTD | DW10TD | DW10CTED4 RHA | RHE | RHF | RHG | RHH | RHJ | RHK | RHM | RHR | RHS | RHT | RHV RHW | RHX | RHY | RHZ• DW12MTED4 | DW12BTED4 | DW12TED4/L4 | DW12UTED | DW12ATEDL/L4 | DW12CTED4 | 4HK | 4HL | 4HN | 4HP | 4HR | 4HS | 4HT 4HW | 4HX | 4HY | 4HZ.



ENGINES:

•Citroën 2.0 l:; C4 04-12 | C5 99-12 | C8 02-12 | DS4 11-12 ;Berlingo 99-07 | Dispatch, Jumpy, Relay 99-12 Synergie, Evasion 99-07 Xantia 98-01 | Picasso 99-07, Picasso, Grand Picasso 06-11

•Citroën 2.2 l:C-Crosser 07-12 | C5 00 – 09 | C6 07-11 | C8 01-10 Relay | Jumper 02-06

•Peugeot 2.0 l:Expert 99-12 | Boxer 01-06 | 206 99-06 | 306 99-02 | 307 01-09 | 406 99-04 | 407 04-11 | 308 07-12 | 607 00-11 | 806 99-02 | 807 05-10 508 11-12 | 3008 09-12 | 5008 09-12 | RCZ 10-12

•Fiat 2.0 lUlysse 03-11 | Scudo 04-12 | Ducato 01-06



MODELS:

•Citroen

•Peugeot

•Fiat
