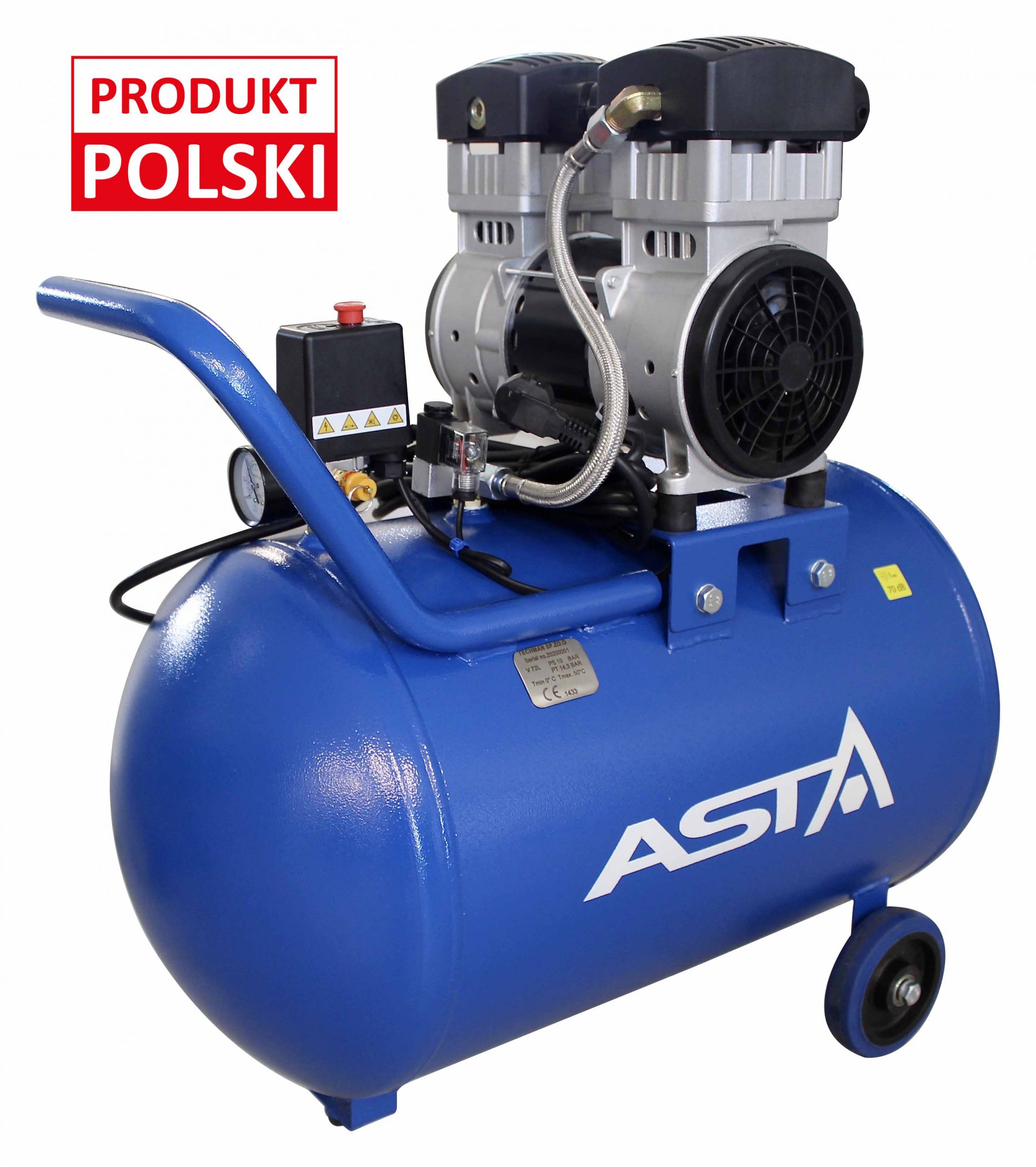

OIL – FEER MOBILE COMPRESSOR WITH A SILANT PUMP ON THE 72L TANK



Manufactured in Poland in accordance with modern technology, the A-ACOM72L air compressor was created for demanding users.The 72L tank
capacity compressor is a combination of quality workmanship and high performance parameters.Optimal tank capacity and high-performance
compressor module create a product designed for a wide group of users from the renovation and construction, furniture and automotive sectors.
The tank, subjected to rigorous strength tests (under 30 bar pressure), was made of high-quality, corrosion-resistant boiler steel with a thickness of
2mm. The high quality of welding seams confirmed by and VT2 tests was obtained thanks to the robotic production process. The safety of the wide
use of the product has been subjected to rigorous tests and technical assessments with the approval of Technical Inspection.
The compressor tank is covered with a powder coating to ensure high chemical, anti-corrosion and mechanical resistance.

The assembly of components did not use commonly used and susceptible to changes in temperature and stress of adhesive joints. All threaded connections are sealed with
teflon tape resistant to abrasion and work in high temperature amplitudes.The tank is operated by an oil-free double piston pump with a capacity of
280 l / min with a capacity of 1500W. Built-in thermal protection prevents potential damage due to motor overheating. Low vibration was achieved
thanks to the engine mounted on rubber cushions. Comfort of use is provided by noise silancers with a built-in air filter, reducing the noise level to
an unbelievably low level of 70dB. Built-in efficient electric motor fans eliminate the possibility of motor overheating. The solenoid valve allows the
compressor pump to smoothly start working without unnecessary overpressure load. The use of this solution also saves the consumption of so-called
inrush current. Correct operation is indicated by an LED. The pressure control switch is equipped with a pressure gauge (boiler pressure), drain valve,
safety valve (8.8 bar) and 5 m power cord with EU or UK plug. The compressor’s mobility is ensured by high-quality double-bearing wheels made of
thermoplastic material capable of absorbing vibrations. Thanks to this, moving the device is comfortable and safe. The centrally located drain valve
allows the tank to be completely drained of condensate causing corrosion. The unit is ready to generate a nominal pressure of 8.5 Bar. A double quick
coupler, pressure regulator and air dryer to improve daily operation are standard equipment.



•Maximum pressure : 8,5 bar
 •Motor power: 1.5 kW
 •Power: 50 Hz
 •Maximum air flow:

  240 l/min – 280l/min
  16,80 m³/h
  0,28 m³/min
 •Power supply : 230 V
 •Cylinders : 2
 •Noise level: 70 dB
 •Boiler volume: 72 L
 •Weight : 40,6 kg
•Dimensions : wys. 78 / szer. 40,5 / dł. 80 cm
