ASTA TOOLS LIMITED COMPANY

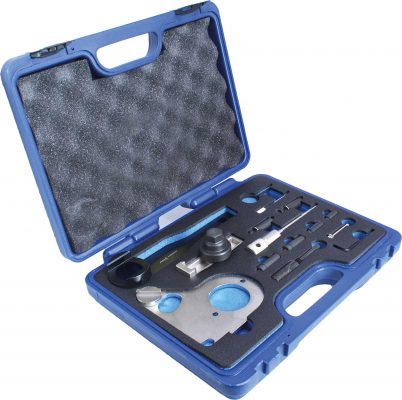

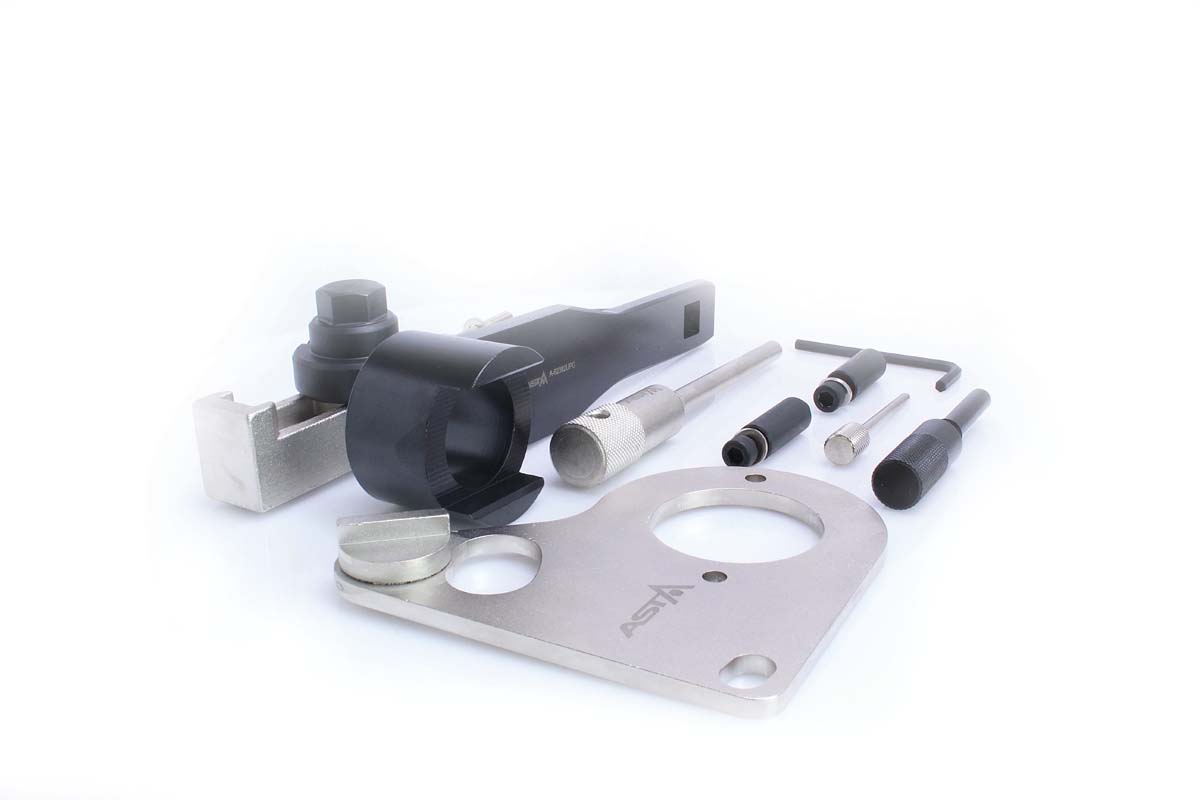

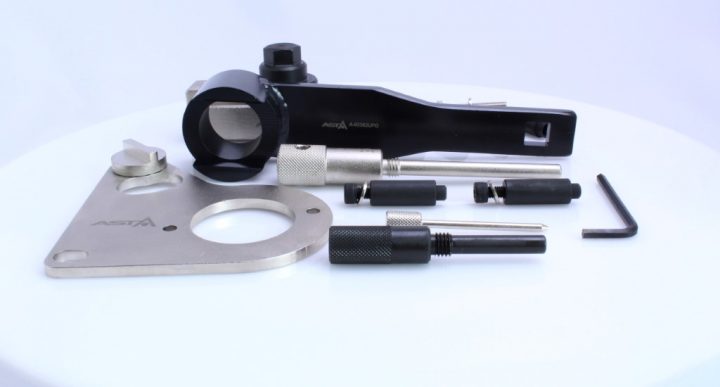

A-62382UPG

Timing Tool – Renault 1.6/2.0/2.3 DCI & Nissan Vehicles



The upgrade set A-62382UPG comes additional with two crankshaft locking pins to cover the 1.6 DCi (Comp G) and 2.0

2.3 DCi (Comp F)Component G – Crankshaft Locking Pin has been added for later M9T 2.0 and R9M 1.6 DCi engines



APPLICATION:

• Mercedes-Benz: C-Class C180 (14-15) BlueTec

• Nissan: Primastar dCi (06-15); Qashqai/+2 CDTi (07-14); X-Trail (07-14); NV400 (11-16); Qashqai (14-16); X-Trail (14-16)

• Vauxhall/Opel: Vivaro-A CDTi (06-14); Movano-B CDTi (10-16); Vivaro-B Bi-CDTi (14-16)

• Renault: Espace IV dCi (06-15); Grand Espace IV GT dCi (06-15); Koleos dCi 175 (08-15); Laguna II (05-07); Laguna III (07-15), Latitude (10-15); Megane II (06-2010); Megane III (09-15); Scenic II (06-09); Grand Scenic II (06-09); Scenic III (09-15); Grand Scenic III (09-15); Trafic II (06-15); Master III (10-16); Espace V (15-16); Fluence (13-15); Megane III (12-16); Trafic III (14-16).



ENGINE TYPES:

• 1.6:

626.951, LWU/R9M, LWX/R9M, LWY/R9M, LWZ/R9M, R9M, R9M 402, R9M 404, R9M 408, R9M 409, R9M 410, R9M 413, R9M 450, R9M 452

• 2.0:
M9R, M9R 610, M9R 613, M9R 615, M9R 630, M9R 692, M9R 700, M9R 721, M9R 722, M9R 724, M9R 740, M9R 742, M9R 744, M9R 746, M9R 748, M9R 754, M9R 756, M9R 760, M9R 761, M9R 762, M9R 763, M9R 780, M9R 782, M9R 784, M9R 786, M9R 788, M9R 800, M9R 802, M9R 803, M9R 804, M9R 805, M9R 806, M9R 808, M9R 809, M9R 811, M9R 812, M9R 814, M9R 815, M9R 816, M9R 817, M9R 820, M9R 824, M9R 828, M9R 830, M9R 832, M9R 833, M9R 834, M9R 835, M9R 836, M9R 838, M9R 839, M9R 844, M9R 845, M9R 846, M9R 849, M9R 854, M9R 855, M9R 856, M9R 857, M9R 858, M9R 859, M9R 865, M9R 866
• 2.3:
L0B/M9T, L0C/M9T, L2U/M9T, LOD/M9T, LP6/M9T, LW7/M9T, LWJ/M9T, LWK/M9T, LWL/M9T, M9T 670, M9T 672, M9T 676, M9T 678, M9T 680, M9T 686, M9T 690, M9T 692, M9T 694, M9T 696, M9T 698, M9T 700, M9T 702, M9T 706, M9T 708, M9T 870, M9T 880, M9T 890, M9T 896, M9T 898
