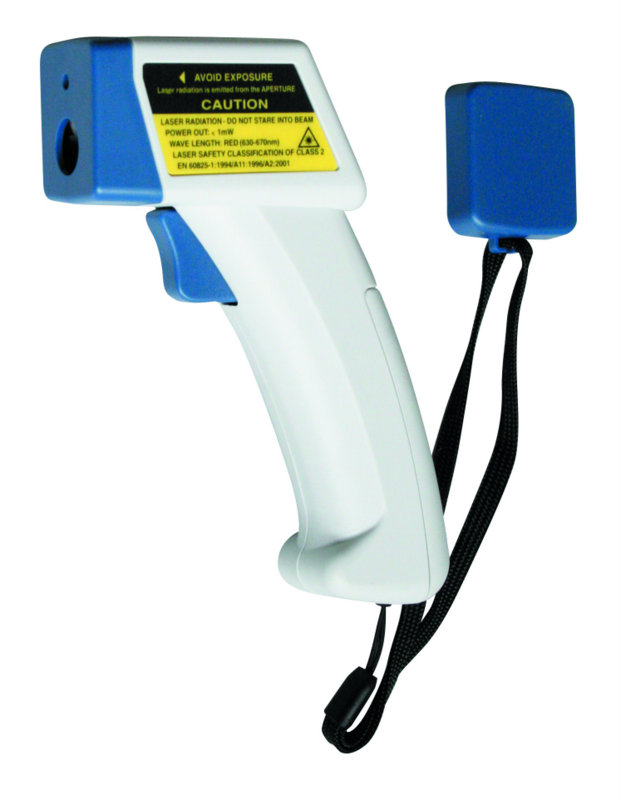

LASER  PYROMETR





Characteristics:

Screen: LCD 3.5 numbers (maximum indication 1999)

Low battery indicator

Sampling: 4 times / second

Work environment: 0°C…50°C, relative humidity <70%

Storage conditions: -20°C…60°C, relative humidity 0+80% (without battery)

Automatic power down: after 10 seconds of inactivity | Power consumption in standby: 5

Power source: 9V (NEDA 1604, IEC6F22 006P)

BAttery life: 9 hours

Dimensions: 148 x 105 x 42 ( mm )

Mass: 157 g. with batteries.



Technical characteristics of the laser indicator:

Safety category: 2

Wavelength: red light 630 – 670 mm

Range: 0.6…15m

Power: 1mW, class 2.

Electrical Characteristics: Measurement range: -30°C…550°C (-22°F… 1022°F)

Screen resolution: 0.5°C/1° (automatic), 1°F

Precision: ± (2°C/4°F) within the range -30°C…100°C (-22°F…212°F); ± (2% indicated) within the range 101°C…550°C(213°F…1022°F)

Temperature cofficient: modification of the exactness of the measurement at 1°C(°F) of the ambient temperature below 18°C (64.4°F) or above 28°C (82.4°F) :±0.2% indicated, or ±0.2°C / 0.36°F (whichever is higher)

Response time 0.25 seconds

Specturm:6…14

Emissions (Eps):0.95

Measurement sensor: themoelectric pile

Optical lens: Fresnel lens

Indicator: single-beam laser indicator <1mW (class2)

Measurement field: Ø 100 mm at a distance of 1000 mm (Ø3.9″ at 39.0″)

Characteristics of measurement cone 10:1(distance from object: diameter of measurement field). Example use in automotive (FOT.A)
