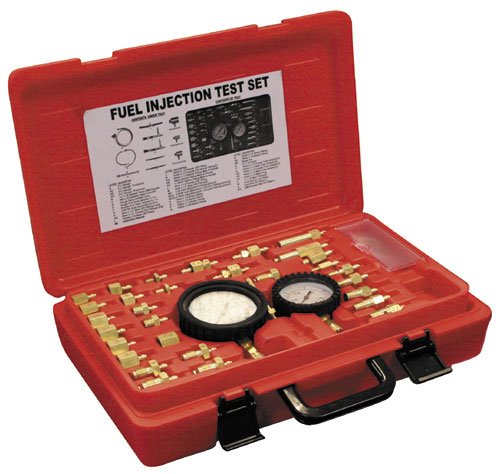

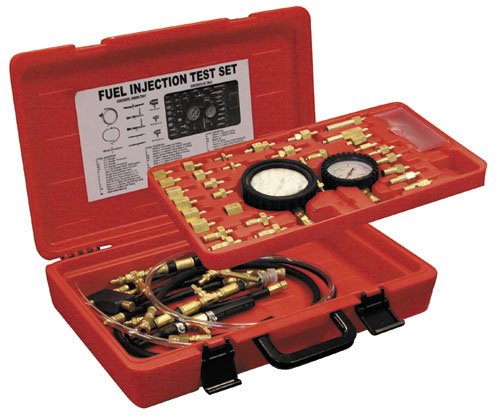

FUEL  INJECTION  SYSTEMS  PRESSURE  TESTER



Set:

1/4″ plug. 2 x connectiong pipe 1/4″ 7mm.

2x connecting pipe 1/4″ 8mm.

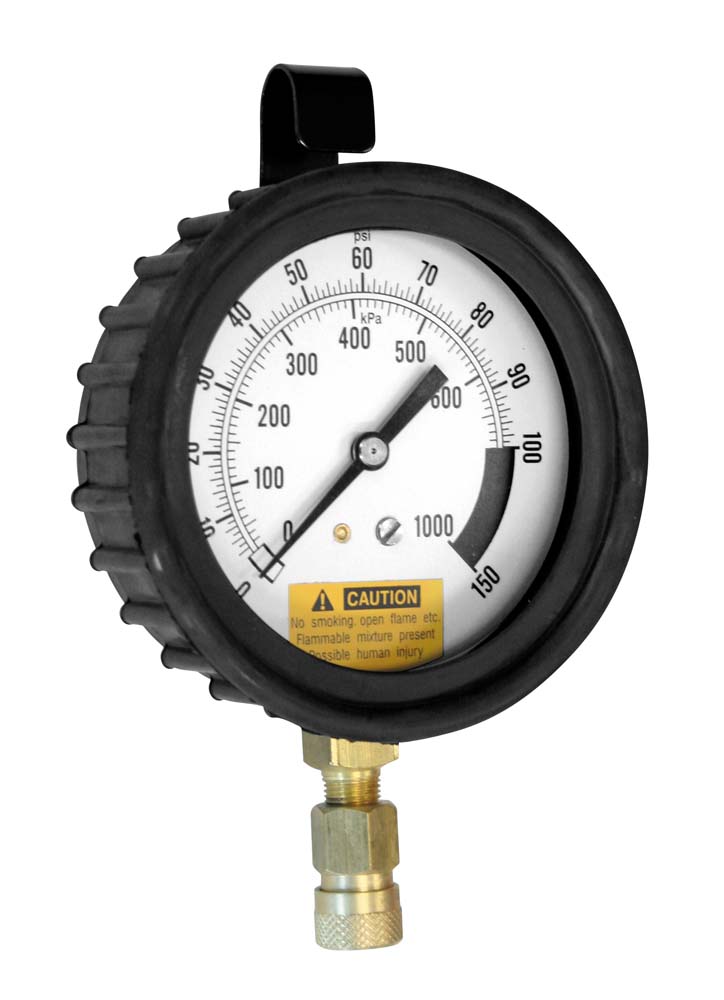

Manometer-range 0-3.5Bar, diameter 41mm.

Manometer-range 0-7Bar, diameter
63mm, connected with three-way adaptor M8 x 1 and 8mm connection pipe with a straight-way ball valve.

4x hose clip.

8mm elastic line, length 50mm.

7mm elastic line, length 50mm.

Spring lock adaptor FORD with valve, 10×1.25.

1/4″ internal three-way adaptor with valve, 10×1.25.

15mm x 1.5 internal three-way
adaptor for GM with 10×1.25 valve.

Adaptor with two rapid -connectors for GM with valve, 10×1.25.

Adaptor with rapid-connector and internal connector, 15mm x
1.5 for GM with valve, 10×1.25.

FORD adaptor with valve, 10×1.25.

Elastic line with valve 10×1.25, length 305mm.

Elastic line with connector 10×1.25, internal and
10×1 external, for Bosch C.I.S., length 650mm.

Three-way base adaptor with lines totaling 1600mm.

In length with a straight-way ball valve, a release valve with 1/4″
thread and two terminals, 12×1.5 internal.

Adaptor for ring connectors, 8×1 external, with valve 10×1.25.

Adaptor for ring connectors, 10×1 external, with valve 10×1.25.

Adaptor for ring connectors, 12×1.25 external, with valve 10×1.25.

Adaptor for ring connectors, 12×1.5 external, with valve 10×1.25.

Adaptor 6×1 with valve 10×1.25

(Honda). Restriction 12×1.5 external x10 x 1 external.

Restriction 12×1.5 external x 10 x1 internal.

Restriction 12 x 1.5 external x8 x1 internal. 2x restriction 12×1.5 external
x 8 x1 external restriction 12 x 1.5 external x 8 x1 ext, – length 75mm.

Restriction 1.5 external x 5/8 x1.5 external coupling 5/8″ x 1.5 interna

Restriction 12×1.5 external x16
x1.5 external(Ford Scorpio).

Coupling 16 x1.5 internal (Ford Scorpio,…).

Coupling 14 x 1.5 internal. Nipple 12 x 1.5 ext. x 14 x 1.5 ext.

Coupling 1/4″ internal. Nipple 12 x 1.5
ext. x1/4″ Multifunction connectiong pipe 6 mm – 10 mm x 12 x 1.5 ext.
